In addition to the electro-surgical units shown in
Electro-Surgical Generators we also make a unit specifically designed
for dental use.
This electro-surgical generator incorporates solid state circuitry,
and is compact, lightweight, and convenient.

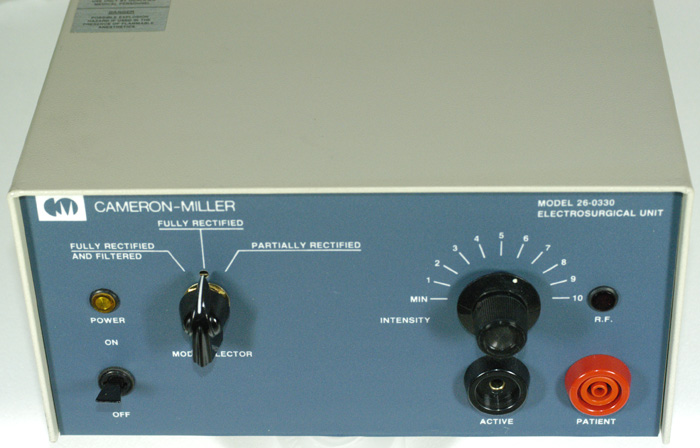

The Model 26-0330 Dental electro-surgical unit is powerful enough
for any dental or oral surgery procedure. There is virtually no
soft tissue procedure where it cannot be used to advantage.
Isolated R.F. outputs which reduces the risk
of alternate path burns.
Permanently attached foot switch.
When used properly,
electrosurgery saves time, reduces postoperative pain, and
produces scar-free healing.
Unit is provided with a permanently attached line (power) cord,
and an instruction manual.
Maximum output power (+/- 10%):
Fully rectified & filtered (pure cut): 95
Fully rectified (blended cut): 75 watts.
rectified (coagulation): 40 watts.
Dimensions: 5” high X 9.5” wide X 6.5” deep.
Weight: 7 pounds.
Please note that the most popular hand piece for
dental use is our Model Number 26-1009. Details on this mini-chuck
handle can be
found under Handles.
In addition to the standard plate type return device (model 26-0991),
we also have an insulated plate (model 26-1491), and a wristlet
(model 26-1391). Details are available in Patient
