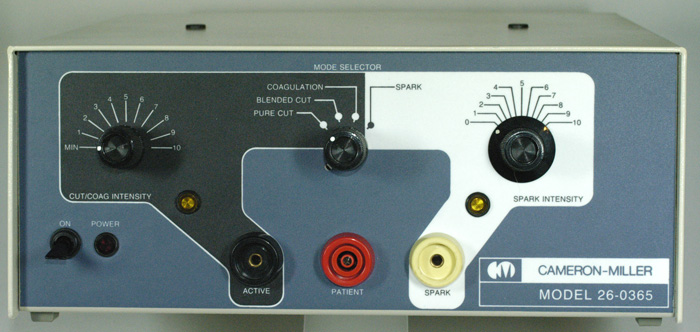

Electro-Surgical Generator Model 26-0365

Back to Electro-Surgical Generators





This electro-surgical generator provides three (3) modes of electronic currents, along with a TRUE spark gap output.



Features include:

  • Monopolar or bipolar accessories may be used
  • When the unit is turned on, the red “ON” light is illuminated.
  • When the output is activated, the amber “POWER” light is illuminated.
  • The spark gap (damped) current is useful for desiccation & fulguration.
  • The spark gap output can be set at low levels for delicate procedures, or at higher settings when heavy sparking is required.
  • Permanently attached foot switch.
  • The Mode Selector control provides only the modality you choose.
  • Warranty: 1 Year

Unit is provided with a permanently attached line (power) cord and an instruction manual.



Maximum output power (+/- 20%):

  • Pure cut: 95 watts.
  • Blended cut: 75 watts.
  • Coagulation: 40 watts.
  • Spark: 30 watts.

Dimensions: 5” high X 12” wide X 11” deep.



Weight: 15 pounds.
