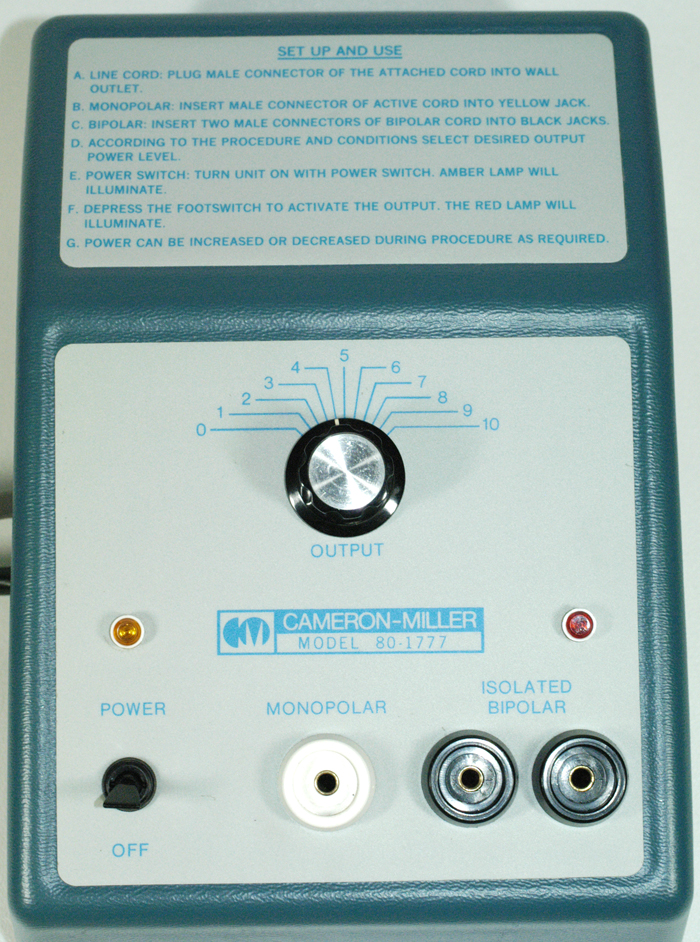

Electro-Surgical Generator Model 80-1777

Back to Electro-Surgical Generators



This spark gap generator provides both bipolar and unipolar outputs.


Features include:

  • Bipolar output.
  • Unipolar output.
  • No patient return necessary.
  • Foot control is permanently attached.
  • Table, desk, or wall mounting.
  • Ideal for fulguration, desiccation, and coagulation.
  • The intensity control provides smooth positive output over a wide range. Lower settings provide a fine current ideal for microsurgical and other delicate procedures. At higher settings greater power is available for heavier procedures including those performed under irrigation.
  • Warranty: 1 Year

A wide range of electrodes and forceps are available for use with this unit. A bipolar cord (Model 75-2802) is used with bipolar forceps.


Unit is provided with a permanently attached line (power) cord.


Maximum output power (+/-20%):

  • Monopolar: 25 watts.
  • Bipolar: 15 watts.

Dimensions: 4.5” high X 7.5” wide X 10” deep.


Weight: 8 pounds.
