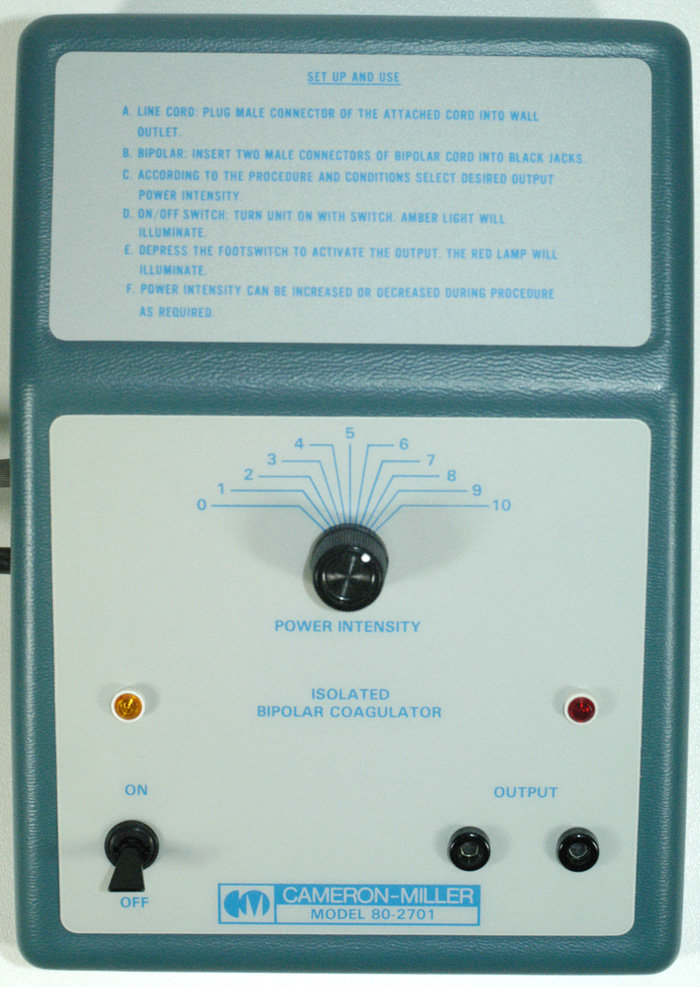

Electro-Surgical Generator Model 80-2701

Back to Electro-Surgical Generators



This bipolar coagulation generator provides an output so that coagulation takes place between the tips of forceps.


Features include:

  • Controlled hemostasis.
  • No patient return necessary.
  • Foot control is permanently attached.
  • Table, desk, or wall mounting.
  • The intensity control provides smooth positive output over a wide range. Lower settings provide a fine current ideal for microsurgical and other delicate procedures. At higher settings greater power is available for heavier procedures including those performed under irrigation.
  • Warranty: 1 Year

A wide range of forceps are available for use with this unit.

A bipolar cord ( Model 75-2801) is used with these forceps.

Unit is provided with a permanently attached line (power) cord.


Maximum output power (+/- 20%):

  • 15 watts.

Dimensions: 4.5” high X 7.5” wide X 10” deep.


Weight: 7 pounds.
