Since 1915 ... Quality you can depend on ... A name you can trust
Rigid Suction Coagulators

These suction coagulator electrodes and accessories work to simultaneously remove blood, mucous, smoke, and gas, and to coagulate the area. The handles accept all the suction coagulation electrodes, as well as the electrode extensions. The fitting for the suction tubing connection is on the rear of the handles, providing straight through suction, designed to eliminate clogging, and facilitate cleaning. The suction control valve is conveniently located on the side of each handle; suction is obtained by covering this valve with a finger. A washer is provided with each suction electrode and extension to ensure an airtight seal with the handle.

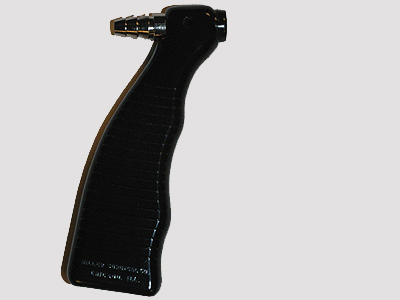

This handle is for use with foot controlled electro-surgical generators. A 26-2015 cord should be used to connect this handle to Cameron-Miller generators. Other cords and adapters are available to enable this handle (and electrodes) to be used with other makes of generators. The 26-1104 handle may be sterilized by any conventional method.

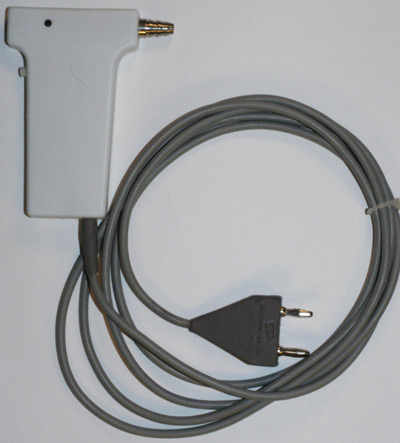

This handle has a permanently attached cord which is terminated with dual banana plugs to fit the monopolar jack on electro-surgical generators with hand control capabilities. This handle is lightweight, comfortable, and easy to use. A convenient push button is used to activate the coagulating current. Current is available whenever it is needed by simply depressing this button, and current will continue to flow as long as the button is depressed. The 75-1304 handle may be sterilized by any conventional method except flash autoclaving.

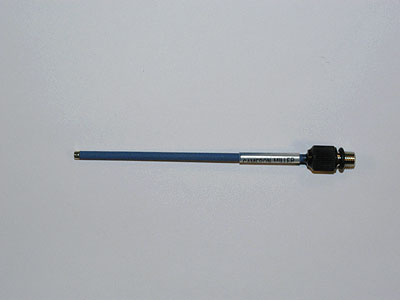

Straight Electrodes

26-1105 - 1/8" x 4"
26-2110 - 5/32" x 4"
26-1109 - 5/32" x 6"
26-2109 - 5/32" x 8"
26-1107 - 5/32" x 12"
26-2107 - 5/32" x 16"
26-2108 - 1/4" x 12"

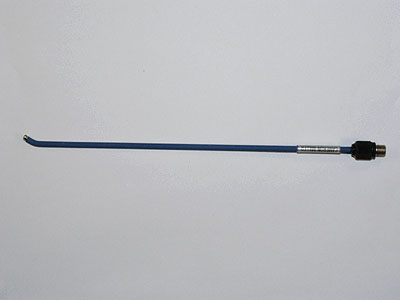

Electrodes with 45° Angle Tip

26-2106 - 1/8" x 4"
26-1106 - 1/8" x 8"

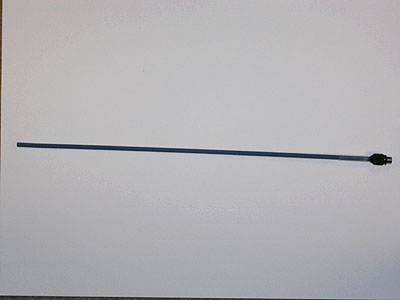

The proximal end of these extensions fits the 26-1104 and 75-1304 handles, and the distal end accepts all standard electrodes. This makes it possible to use any standard Cameron-Miller electrode in procedures where suction is necessary.

26-1120 - 1/8" x 12"
26-1121 - 3/16" x 14"


Also available is the 75-1138 extension without suction - 3/16" x 2 1/4".
