Rigid Snares



Self-Opening



These snares are designed for convenient one hand operation, and greatly simplifed manipulation with the easily positioned self-opening loop. The loops are constructed of multiple strands of stainless steel wire for maxiumum strength, durability, and safety. These snares may be sterilized by any conventional method, and are completely insulated.

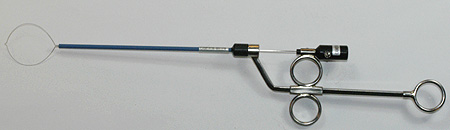

Complete snare and

handle - 6" (80-7196)

Sheath and loop

assembly - 6" (80-7186)

Sheath and loop assembly - with suction - 12" (80-7132)
Loop - 6" (80-7176)
Loop - 12" (80-7172)
Sheath - 6" (80-7166)

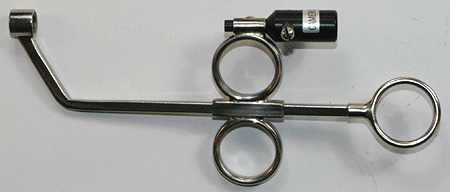

Handle (80-7116)
Without Suction
80-7196 6" complete snare and handle, which consists of:
      80-7116 snare handle
      80-7186 6" sheath and loop assembly, which consists of:
        80-7176 6" loop
        80-7166 6" sheath

80-7198 8" complete snare and handle, which consists of:
      80-7116 snare handle
      80-7188 8" sheath and loop assembly, which consists of:
        80-7178 8" loop
        80-7168 8" sheath

With Suction
80-7142 12" complete snare and handle, which consists of:
      80-7116 snare handle
      80-7132 12" sheath and loop assembly, which consists of:
        80-7172 12" loop
        80-7102 12" sheath

80-7145 15" complete snare and handle, which consists of:
      80-7116 snare handle
      80-7135 15" sheath and loop assembly, which consists of:
        80-7175 15" loop
        80-7105 15" sheath


Standard



These lightweight snares may be sterilized by any conventional method. They feature a swiveling snare stylet, permitting easy rotation of the wire loop, a snare handle which is offset to minimize vision obstruction; and completely insulated snare arms.

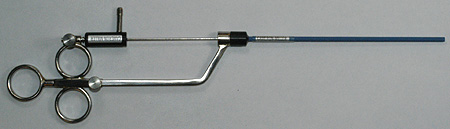

Complete snare - 6" (26-2926)

Snare arm - 6" (26-0915)

Snare arm - with

suction - 12" (26-2916)
Sheath - 6" (26-1636)
Sheath - with suction - 12" (26-1632)
Stylet - 12" (26-1612)

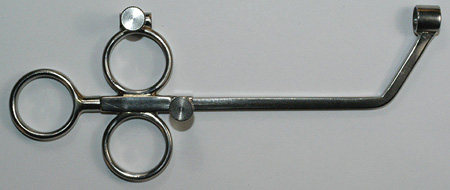

Handle (26-2914)
Without Suction
26-2924 complete 4" snare, which consists of:
      26-2914 snare handle
      26-0549 4" snare arm, which consists of:
        26-1604 4" stylet
        26-1634 4" sheath
Replacement wires (pkg. of 12) may be ordered using catalog # 26-5571.

26-2926 complete 6" snare, which consists of:
      26-2914 snare handle
      26-0915 6" snare arm, which consists of:
        26-1606 6" stylet
        26-1636 6" sheath
Replacement wires (pkg. of 12) may be ordered using catalog # 26-5574.

With Suction
26-2922 complete 12" snare, which consists of:
      26-2914 snare handle
      26-2916 12" snare arm, which consists of:
        26-1612 12" stylet
        26-1632 12" sheath
Replacement wires (pkg. of 12) may be ordered using catalog # 26-5574.

26-2925 complete 15" snare, which consists of:
      26-2914 snare handle
      26-0884 15" snare arm, which consists of:
        26-1615 15" stylet
        26-1635 15" sheath
Replacement wires (pkg. of 12) may be ordered using catalog # 26-5574.
