Forceps

Cameron-Miller’s extensive line of electrosurgical forceps provide the means for precise coagulation. A number of forcep sizes with various configurations, and modes of operation are available.



Please note that all dimensions are nominal.



All of our forceps are coated with a specially formulated durable insulating material which provides an extended service life.



In addition to the forceps shown we can provide other forceps to your order.

HAND CONTROLLED


These forceps have an activating switch “built in”. Use by grasping the tissue between the forcep tips and then further squeeze to activate. These forceps are bayonet shaped with medium serrated tips, and are complete with a permanently attached flexible 10 foot cord.



Unipolar (also called monopolar)

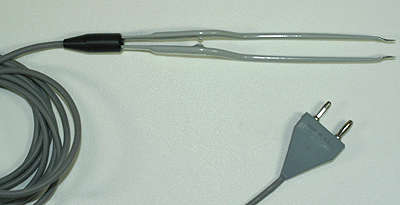

75-5771


7” bayonet, unipolar

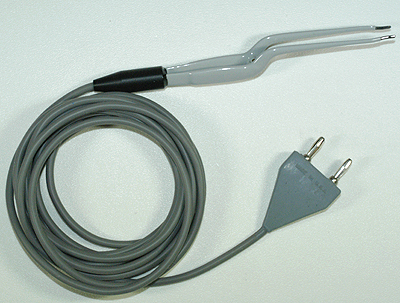

75-5751

5” bayonet, unipolar

Bipolar

With these forceps coagulation occurs only between the forcep tips, not affecting adjacent tissue. This limits the area of coagulation when such control is essential.

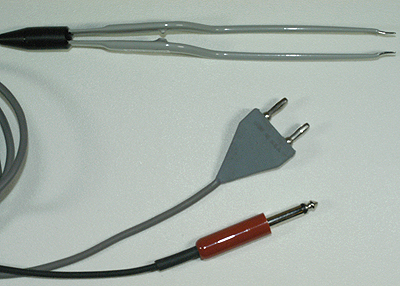

75-8017

7” bayonet, bipolar

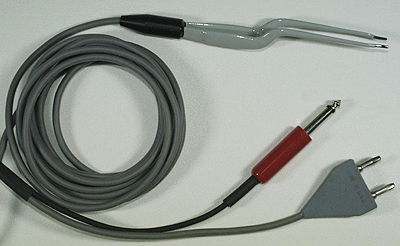

75-8015

5” bayonet, bipolar

FOOTSWITCH CONTROLLED



Unipolar

These forceps connect to the coagulation jack on any Cameron-Miller electrosurgical unit with the standard 26-1015 active cord or the 26-2015 coagulation cord.


Please see Cords for cords suitable for use with other electrosurgical units.



26-0973
5” straight fine smooth tip



26-1093
5 ½” straight medium serrated tip



26-1083
5” curved fine smooth tip



26-1173
7” curved fine serrated tip



26-1183
7” straight fine serrated tip



26-1213
7 ½” bayonet medium serrated tip



26-1193
7 ½” bayonet fine serrated tip

Bipolar

These forceps are connected to the electrosurgical generators with the cords shown below. No patient return device is required since the coagulating current flows only between the forcep tips.


75-2814
5” straight fine smooth tip



75-2817
5 ½” straight medium serrated tip



75-2815
5” curved fine smooth tip



75-2813
7” curved fine serrated tip



75-2816
7” straight fine serrated tip



75-2812
7 ½” bayonet medium serrated tip



75-2811
7 ½” bayonet fine serrated tip

The connecting cables for the above Bipolar (Footswitch controlled) forceps are shown below. All are complete with a 10 foot flexible cord. The plugs connect to the coagulation and patient return jacks on the electrosurgical units. This makes the customary patient return device unnecessary.

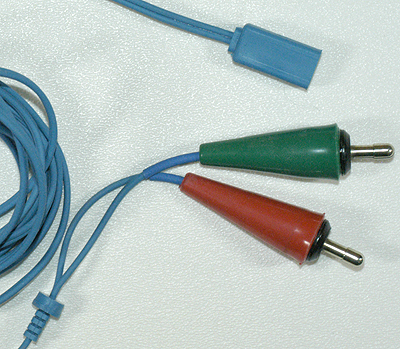

75-2802

connects to most older Cameron-Miller electrosurgical units

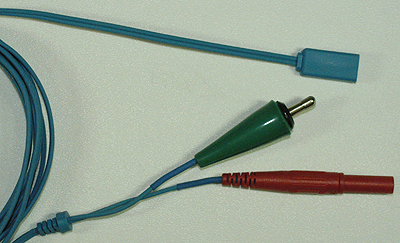

75-2804

connects to most newer Cameron-Miller electrosurgical units

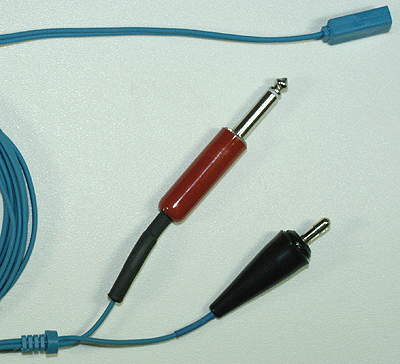

75-2803

connects to Cameron-Miller models
80-1983 and 26-2500

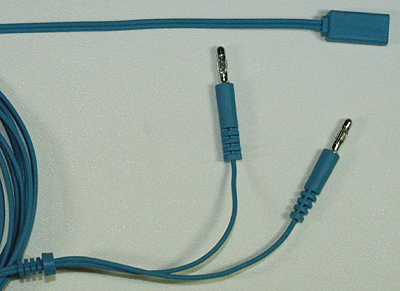

  75-2801

connects to Cameron-Miller model 80-2701 and most non Cameron-Miller units

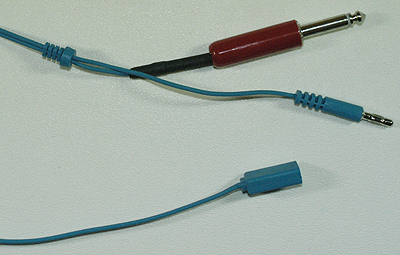

  75-2805

connects to units with a banana jack active outlet along with a two wire patient return jack utilizing a “telephone” type connector
